Industrial Series

Clopay Industrial Series overhead doors provide a combination of performance and reliability for a range of industrial applications. For increased energy efficiency, polystyrene insulated insulation with a vinyl or steel backer, is available. These commercial doors offer an assortment of flush, ribbed or raised panel designs in a variety of colors, textures, windows and steel gauges. Ideal applications include warehouses, loading docks and industrial and agricultural facilities.

Models

Model	Section Thickness	Panel Design	Ext. Steel Gauge	Backer	R-value*	U-Factor*	Max Width**	Max Height
520	2"	Minor & Deep Ribs	20 Gauge	N/A	N/A	N/A	26'2"	20'0"
520S	2"	Minor & Deep Ribs	20 Gauge	Pre-painted 30 gauge steel back cover	6.6	0.37	26'2"	20'0"
522	2"	Flush	20 Gauge	N/A	N/A	N/A	24'2"	24'0"
522S	2"	Flush	20 Gauge	Pre-painted 30 gauge steel back cover	6.6**	0.37	24'2"	24'0"
524	2"	Minor & Deep Ribs	24 Gauge	N/A	N/A	N/A	24'2"	20'0"
524V	2"	Minor & Deep Ribs	24 Gauge	Polyethylene vinyl back cover	6.6	0.37	26'2"	20'0"
524S	2"	Minor & Deep Ribs	24 Gauge	Pre-painted 30 gauge steel back cover	6.6	0.37	24'2"	20'0"
525	2"	Minor & Deep Ribs	25 Gauge	N/A	N/A	N/A	20'2"	16'0"
525V	2"	Minor & Deep Ribs	25 Gauge	Polyethylene vinyl back cover	6.6	0.37	20'2"	16'0"
525S	2"	Minor & Deep Ribs	25 Gauge	Pre-painted 30 gauge steel back cover	6.6	0.37	20'2"	16'0"
664	2 1/8"	Raised Panel Steel	24 Gauge	N/A	N/A	0.37	20'2"	16'0"
664V	2 1/8"	Raised Panel Steel	24 Gauge	Polyethylene vinyl back cover	6.3	N/A	20'2"	16'0"

*Calculated door section R-value is in accordance with DASMA TDS-163

*Tested door U-factor is in accordance with DASMA 105.

Options

Insulated and Non-insulated doors come with a variety of options to address your building requirements. Options below are not available on all models. See model specific literature or consult a Clopay commercial dealer for option availability.

Design Options

Windows
24″x6″
24″x12″
Full View (pre-painted white or brown or clear anodized)

Color Options

** Available on select models.

Performance Options

High Cycle Springs (25K, 50K and 100K available)
3″ heavy duty track (where not standard)
Outside keyed Security Lock
Double End Stiles
Design pressure rated (WindCode)
Impact Rated
Photo eyes, sensing edges and Operators
Extended 8-Year Hardware Warranty
Header (top) and Jamb Seals
High Performance Hardware Upgrade

Custom Options

Mullions

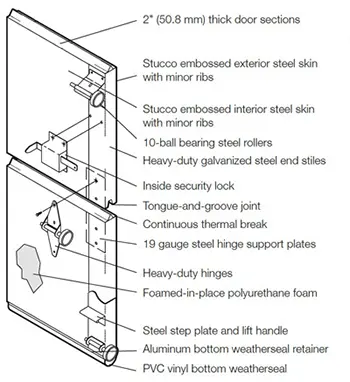

Construction

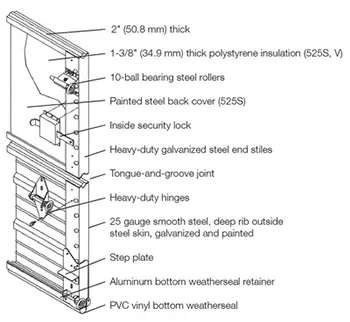

Model 520/524/525

Panel Design:	2″ thick roll formed ribbed steel
Steel Gauge:	20 ga (.034″ min) – Model 520, 24 ga (.022″ min) – Model 524and 25 ga (.019 min) – Model 525 ribbed steel sections
Joint Design:	Tongue and groove
Thickness/Insulation:	No insulation
Hardware:	14 gauge hinges, commerical 10-ball steel rollers, 10,000 cycle torsion springs
Colors:	Pre-painted white or brown (520/525) Pre-painted white, brown, tan or gray (524)
Limited Warranty:	10-year finish against rust / one-year material & workmanship

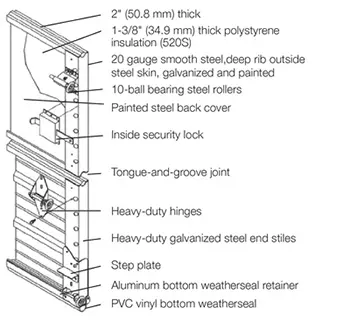

Model 520S

Panel Design:	2″ thick roll formed stucco embossed ribbed steel
Steel Gauge:	20 gauge (.034″ min) for maximum dent resistance
Joint Design:	Tongue and groove
Thickness /Insulation	1-3/8″ thick polystyrene insulation with pre-painted 30 gauge steel backcover
Thermal Conductivity	R-Value 6.6*
Paint System:	3-stage paint process delivers maintenance free finish that resists rust perforation
Colors	Pre-painted white or brown
Limited Warranty:	10-year paint / one-year material & workmanship

Model 522/522S5

Panel Design:	2″ thick roll formed stucco embossed flush steel
Steel Gauge:	20 gauge (.034″ min) for maximum dent resistance
Joint Design:	Tongue and groove
Thickness /Insulation	1-3/8″ thick polystyrene insulation with pre-painted 30 gauge steel backcover
Thermal Conductivity	R-Value 6.6*
Paint System:	3-stage paint process delivers maintenance free finish that resists rust perforation
Colors	Pre-painted white or brown
Limited Warranty:	10-year paint / one-year material & workmanship

Model 524V/524S

Panel Design:	2″ thick roll formed stucco embossed steel
Steel Gauge:	24 gauge (.022″ min) ribbed steel sections
Joint Design:	Tongue and groove
Thickness /Insulation	1-3/8″ thick polystyrene insulation with polyethylene vinyl backcover (524V) 1-3/8″ thick polystyrene insulation with pre-painted 30 gauge steel backcover (524S)
Thermal Conductivity	R-Value 6.6*
Paint System:	3-stage paint process delivers maintenance free finish that resists rust perforation
Colors	Pre-painted white, brown, tan or gray
Limited Warranty:	10-year paint /one-year material & workmanship

Model 525V/525S

Panel Design:	2″ thick roll formed smooth steel with combination of deep minor ribs
Steel Gauge:	25 gauge (.019″ min)
Joint Design:	Tongue and groove
Thickness /Insulation	1-3/8″ thick polystyrene insulation with polyethylene vinyl backcover (525V) 1-3/8″ thick polystyrene insulation with pre-painted 30 gauge steel backcover (525S)
Thermal Conductivity:	R-Value 6.6*
Paint System:	3-stage paint process delivers maintenance free finish that resists rust perforation
Colors:	Pre-painted white or brown
Limited Warranty:	10-year paint / one-year material & workmanship

Model 664

Panel Design:	1 7/8″ thick roll formed steel
Steel Gauge:	24 gauge (.22″ min) raised panel door
Joint Design:	Tongue and groove
Thickness & Insulation	No insulation
Hardware:	14 gauge hinges, commerical 10-ball steel rollers, 10,000 cycle torsion springs
Colors:	Pre-painted snowmist white, chocolate, brown, almond, sandstone, or desert tan.
Limited Warranty:	10-year finish against rust through / one-year material & workmanship

Model 664V

Panel Design:	1-7/8″ thick woodgrain embossed raised panel steel
Steel Gauge:	24 gauge (.022″ min) ribbed steel sections
Joint Design:	Tongue-and-groove
Thickness /Insulation	1-3/8″ thick polystyrene insulation with polyethylene vinyl backcover
Thermal Conductivity	R-Value 6.3*
Paint System	3-stage paint process delivers maintenance free finish that resists rust perforation
Colors	Pre-painted white, brown, tan or gray; Trinar white or beige
Limited Warranty:	10-year paint / one-year material & workmanship

*Calculated garage door section R-value is in accordance with DASMA TDS-163.

Specs/Drawings

Track/Jamb	Drawing	DXF	PDF
Standard Track	DWG	DXF	PDF
Standard Track Follow the Roof Track	DWG	DXF	PDF
Low Headroom–Rear Mount Track	DWG	DXF	PDF
Low Headroom–Front Mount Track	DWG	DXF	PDF
Vertical Track	DWG	DXF	PDF
High Lift Track	DWG	DXF	PDF
High Lift Follow-the-Roof Track	DWG	DXF	PDF
Jamb Details	DWG	DXF	-

Track And Jamb Drawings

Track/Jamb	Drawing	DXF	PDF
Standard Track	DWG	DXF	PDF
Standard Track Follow the Roof Track	DWG	DXF	PDF
Low Headroom–Rear Mount Track	DWG	DXF	PDF
Low Headroom–Front Mount Track	DWG	DXF	PDF
Vertical Track	DWG	DXF	PDF
High Lift Track	DWG	DXF	PDF
High Lift Follow-the-Roof Track	DWG	DXF	PDF
Jamb Details	DWG	DXF	-

Brochures

Brochure Commercial Idea Book

At Clopay, we take form and function seriously. From blueprints to reality, our expert engineers design commercial doors that exceed expectations for performance and elevated style.

Brochure Model 520/520S

A great fit for industrial applications, models 520 and 520s deliver on durability and weather protection.

Brochure Model 524/524S

Weather-proof and durable, these doors are made with optional polystyrene insulation and an injection-molded lite frame with integral weatherseal for optimum protection.

Brochure Model 525/525S/525V

Brochure Model 525/525S/525V These rib-steeled doors come available in polystyrene insulated or non-insulated with our advanced Tog-L-Loc® design for rust and leak prevention.

Brochure Model 664/664V

Our contemporary-look Models 664 and 664V raised panel steel doors are available in both insulated and non-insulated options.

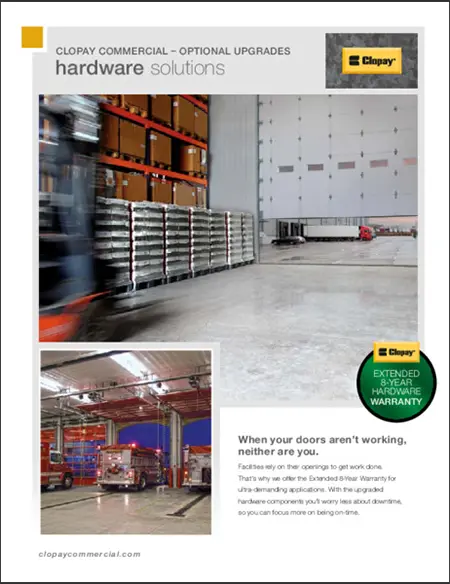

Extended 8-Year Hardware Warranty

Facilities rely on their openings to get work done. That’s why we offer an Extended 8-Year Warranty for demanding applications.

Brochure 522/522S

Our flush-steel doors are available with our environmentally safe insulation with a 30 gauge prepainted steel back cover.

Springs and Hardware

Commercial Hardware

Commercial doors are designed with hardware to meet demanding applications of commercial building usage. All commercial doors are provided with the following hardware as standard. For additional upgraded hardware see “Options” tab.

14 gauge hinges
Commercial 10 ball steel rollers with options for nylon tire rollers
10,000 cycle torsion springs
Steel step plate and lift handle for easy operation
Inside slide lock for increase security
19 gauge steel hinge support plates
18-gauge single end stiles; 16-gauge double end stiles
Galvanized aircraft cables with 7:1 safety factory
2” or 3” track in a variety of configurations to meet building design requirements

Commercial Hardware

In commercial settings, space utilization and space constraints are important factors in choosing the correct hardware configuration for your application. Clopay track offerings and options enable you to make the most efficient use of available space. Options include standard lift, low head room front or rear mount, follow the roof pitch, full vertical or combination of these options. Learn more.

Commercial Torsion Springs

Designed to counterbalance even the largest doors, commercial torsion spring assemblies can be designed for Industry standard 10,000 cycles or can be upgraded to 25,000, 50,000 or 100,000 expected life cycles.

Industrial Series

Available with or without insulation, the Industrial Steel overhead doors combine performance and reliability for a range of industrial applications.
