Energy Series overhead sectional doors are tough, save energy and come with many performance and design options. Polystyrene insulation helps cut heating and cooling costs for years. The steel outside is stucco or woodgrain embossed, with flush, minor ribbed or raised panel sections. They work well in warehouses, loading docks, factories and farm buildings.
Models
| Model | Section Thickness | Emboss | Ext. Steel Pattern | Ext. Steel | R-Value* | U-Factor* | Thermal Break Max Width✭ | Max Height✭ |

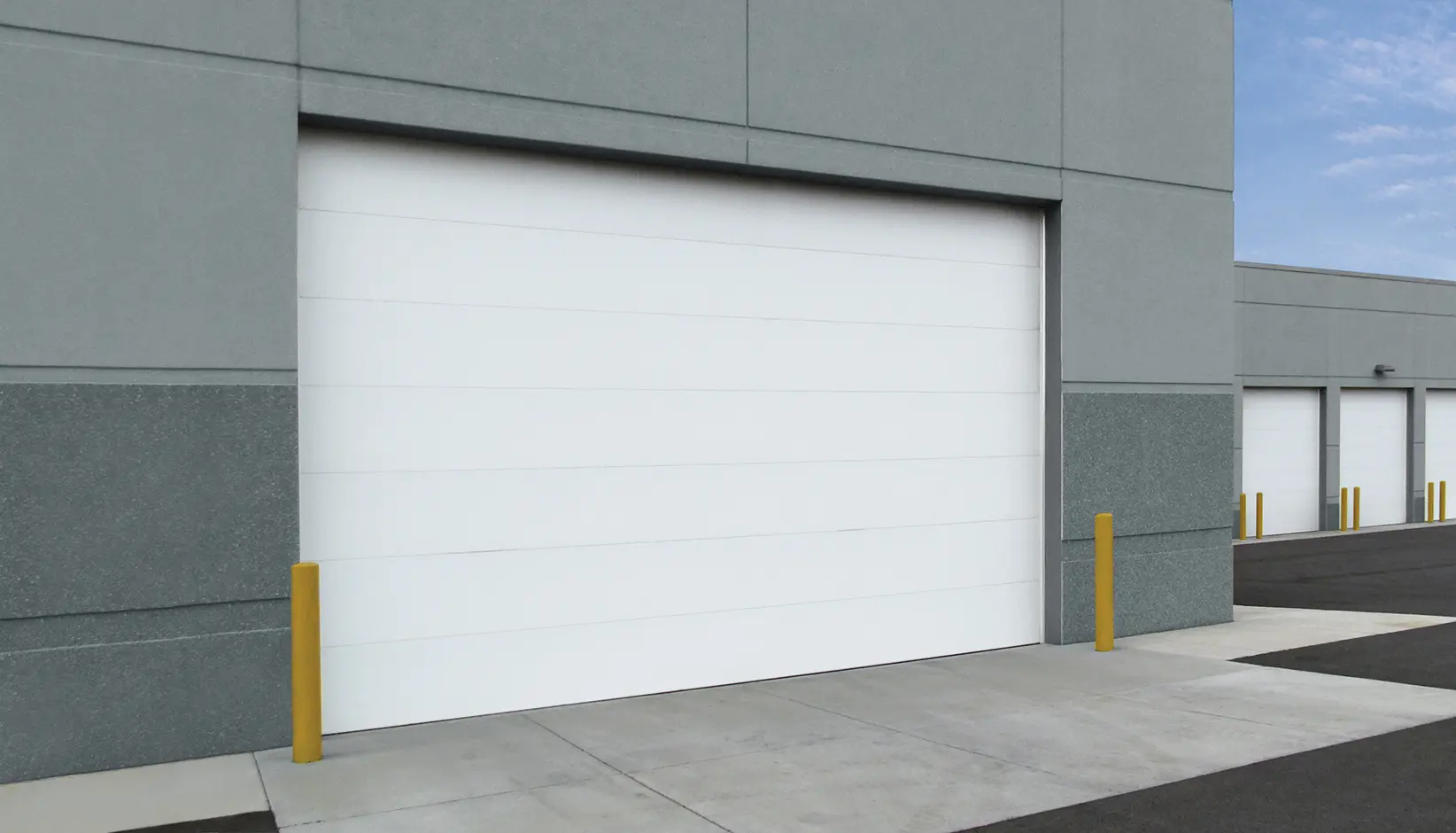

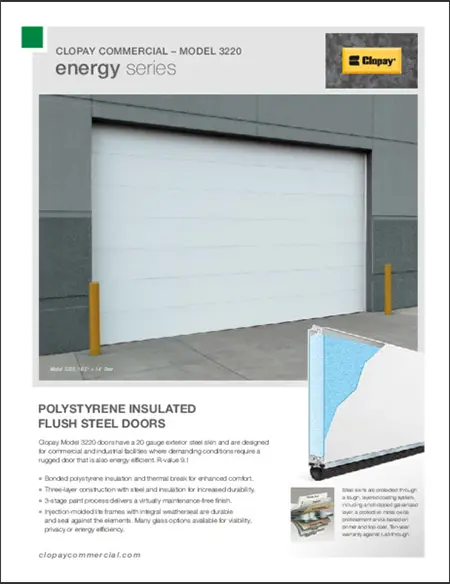

| 3220 | 2" | Stucco | Flush | 20 Gauge | 9.1 | 0.24 | Thermally broken 26'2" | 20'0" |

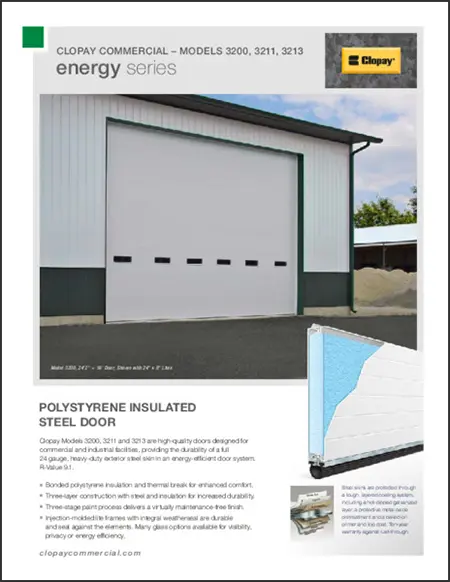

| 3213 | 2" | Woodgrain | Flush | 24 Gauge | 9.1 | 150C | Thermally broken 24.4" | 18'0" |
| 3211 | 2" | Woodgrain | Flush | 24 Gauge | 9.1 | 0.24 | Thermally broken 24'4" | 18'0" |
| 3200 | 2" | Stucco | Minor ribbed | 24 Gauge | 9.1 | 0.24 | Thermally broken 26'2" | 20'0" |
| 3155 | 1-3/8" | 150C | Flush panel | 27 Gauge | 6.5 | 0.3 | Thermally broken 16'0" | 16'0" |

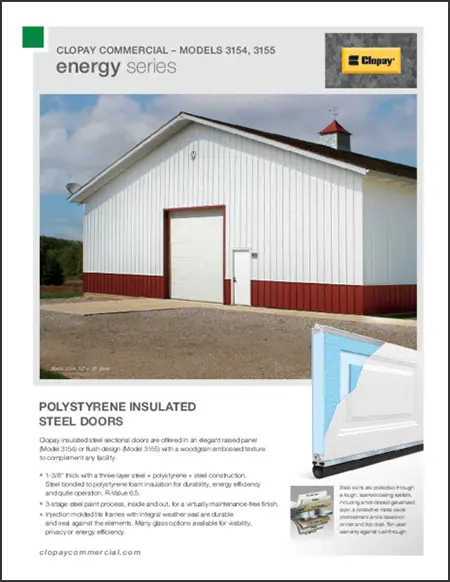

| 3154 | 1-3/8" | Woodgrain | Raised Panel | 27 Gauge | 6.5 | 0.3 | Thermally broken 16'0" | 16'0" |
| 3150 | 1-3/8" | Stucco | Minor ribbed | 27 Gauge | 6.5 | 0.3 | Thermally broken 16'0" | 16'0" |
*Calculated door section R-value is in accordance with DASMA TDS-163
*Tested door U-factor is in accordance with DASMA 105.
Options
Glass Panel Options
24" X 8" (3150, 3200, 3220)
24" X 12" (3150, 3200, 3220)
Full-View* (3150, 3200, 3220)
19-1/2" x 12" (3154, 3155, 3211, 3213)
*Aluminum Intellicore polyurethane full-view section available
Note: Windows available in insulated or insulated tempered glass.
Glazing Material Options
Clear Glass
Gray Tinted Glass
Bronze Tinted Glass
Mirrored Glass*
Obscure Glass
White Laminate Glass*
Frosted Glass Or Acrylic
Clear Acrylic
Gray Acrylic
White Acrylic
Clear Polycarbonate
Bronze Polycarbonate
Aluminum Panel (Color Matched)
*Mirrored and laminate not available in 1/2″
Glass thickness available in 1/8″, 1/4″ and 1/2″. Tri-wall polycarbonate thickness available in 1/2″. Low-E available on insulated glass.
Color Options
Standard White
Clear Polycarbonate
Clear Polycarbonate
Clear Polycarbonate
Clear Polycarbonate
Clear Polycarbonate
Clear Polycarbonate
Clear Polycarbonate
Clear Polycarbonate
Clear Polycarbonate
Clear Polycarbonate
Clear Polycarbonate
Clear Polycarbonate
*Available on select models.
Performance Options Available
Double-end hinge
Double-end hinge

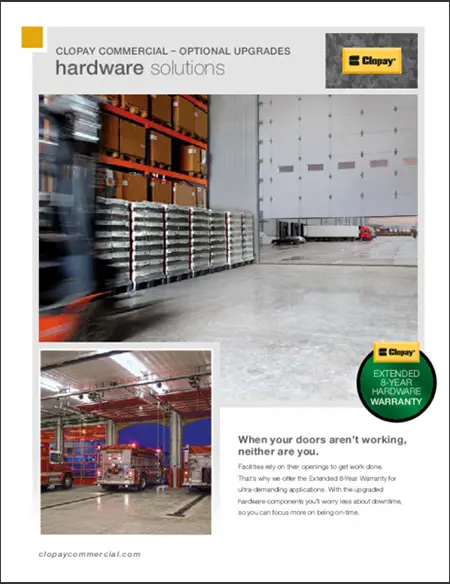

High performance hardware: 10 gauge end hinges, a heavy-duty top bracket and 3" sealed rollers with a 5/8" stem.
We can add an exhaust port to any solid sectional door, in select sizes.
WindCode® reinforcement up to W8, design pressure (DP) 52 PSF, based on how the door is built. Doors are tested to 50% over DP.
Industrial-grade parts can replace the standard ones.
Springs rated for 25,000, 50,000 or 100,000 cycles.
Specs/Drawings
| Model | BIM | Shop Drawing | Specs | Installation Manual | Warranty |
| Model 3150 | - | PDF DXF |
DOCUMENT RTF |
||
| Model 3154 | - | DXF DWG |
DOCUMENT RTF |
||
| Model 3200 | - | PDF DWG DWG |
DOCUMENT RTF |
||
| Model 3213 | - | PDF DXF RFA |
DOCUMENT RTF |
||
| Model 3220 | RFA RFA RFA |
DXF DWG |
DOCUMENT RTF |
- | - |
Track And Jamb Drawings
| Track/Jamb | Drawing | DXF | |
| Standard Track | DWA | DXF | - |
| Standard Track Follow the Roof Track | DWA | DXF | |
| Low Headroom, Rear Mount Track | DWA | DXF | |
| Low Headroom, Front Mount Track | DWA | DXF | |
| Vertical Track | DWA | DXF | |
| High Lift Track | DWA | DXF | |
| High Lift Follow-the-Roof Track | DWA | DXF | |
| Jamb Details | DWA | DXF | - |

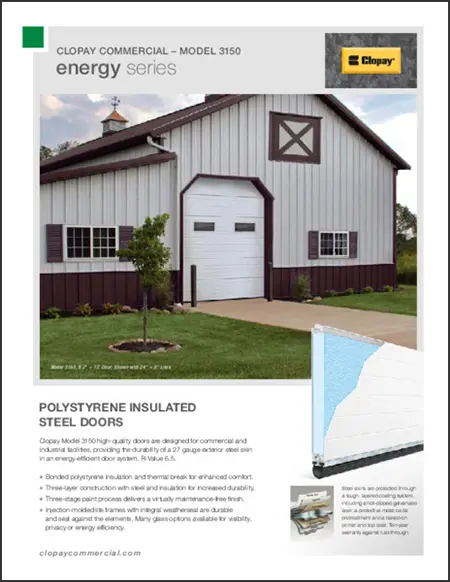

Brochures
Springs and Hardware
- 14 gauge hinges
- 10-ball steel rollers, or nylon tire rollers as an option
- 10,000 cycle torsion springs
- Steel step plate and lift handle
- Inside slide lock for added security
- 19 gauge steel hinge support plates
- 18-gauge single end stiles; 16-gauge double end stiles
- Galvanized aircraft cable, 7:1 safety factor
- 2” or 3” track, set up to fit the building
Space is often tight in a commercial building, so the track has to fit the room. Track choices: standard lift, low headroom with front or rear mount, follow the roof pitch, full vertical, or a mix of these.
