Energy Series with Intellicore® doors are for commercial buildings that need good climate control. Polyurethane insulation keeps the inside cooler in summer and warmer in winter. The steel outside is stucco or woodgrain embossed, with flush, minor ribbed or raised panel sections. They work well in warehouses, factories, city buildings and stores.
Models

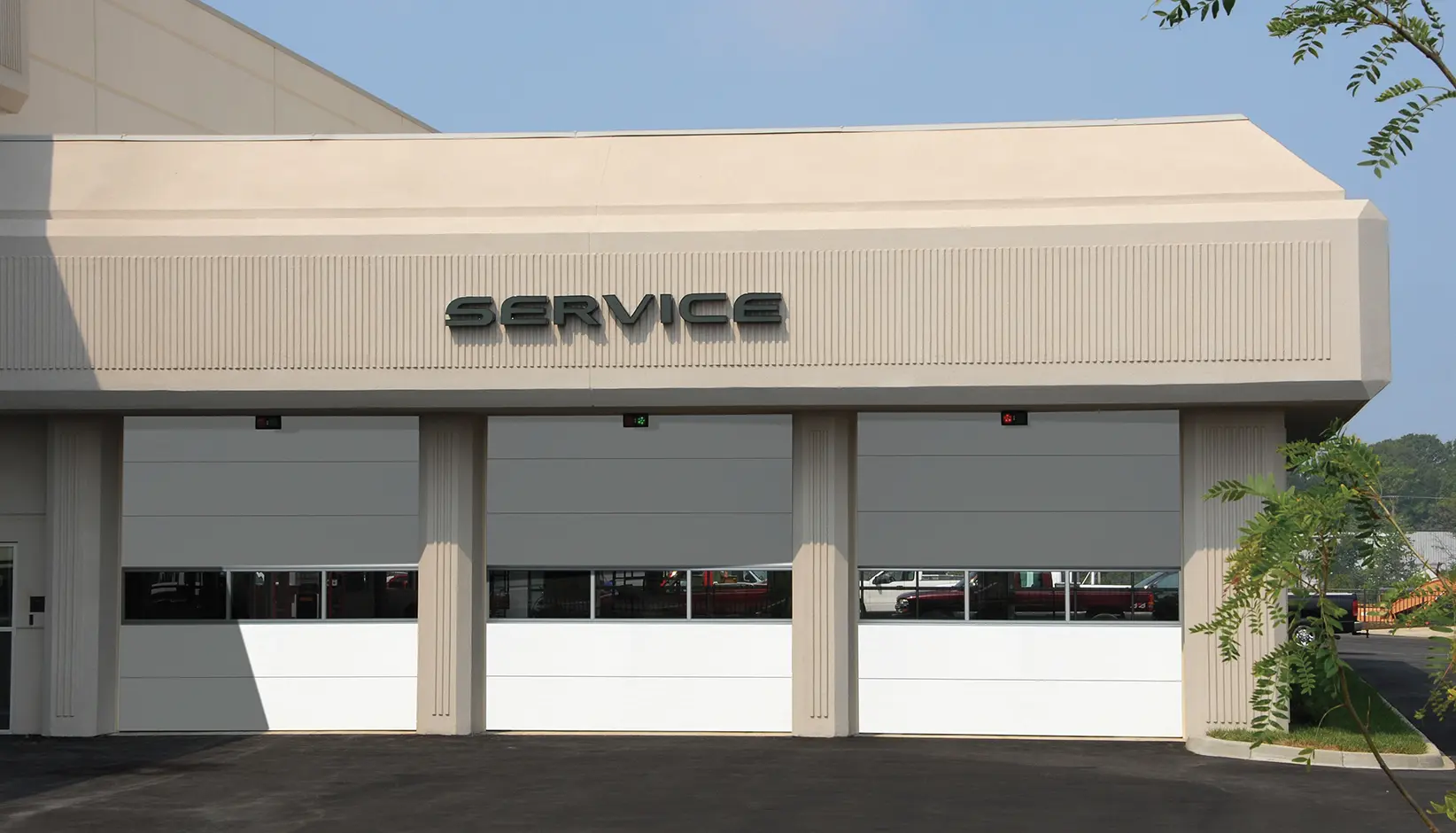

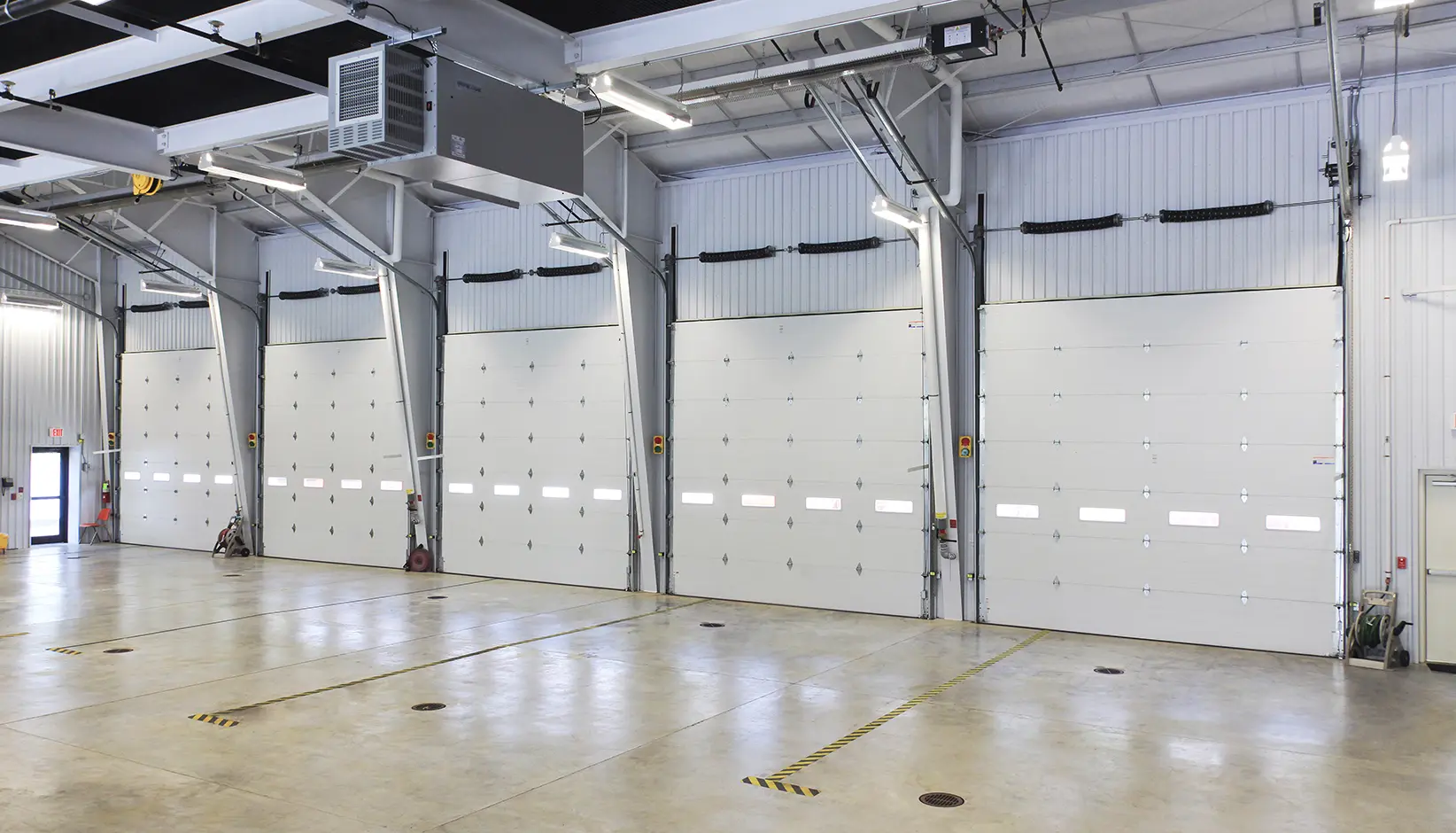

| Model | Thickness | Emboss | Exterior Steel | Pattern | R-Value* | U-Factor* | Std Max Width** | Std Max Height |
| 3730 | 3" | Stucco | 27 Gauge | Minor Ribbed | 27.2 | 0.16 | 30'2" | 20'0" |
| 3724 | 2" | Stucco | 24 Gauge | Minor Ribbed | 18.4 | 0.19 | 36'2" | 20'0" |
| 3723 | 2" | Woodgrain | 27 Gauge | Raised Panel | 18.4 | 0.19 | 24'2" | 18'0" |
| 3722 | 2" | Stucco | 20 Gauge | Flush | 18.4 | 0.19 | 32'2" | 20'0" |
| 3721 | 2" | Woodgrain | 27 Gauge | Flush | 18.4 | 0.19 | 24'2" | 18'0" |
| 3720 | 2" | Stucco | 27 Gauge | Minor Ribbed | 18.4 | 0.19 | 40'2" | 20'0" |
| 3717 | 1 3/4" | Stucco | 27 Gauge | Minor Ribbed | 16.2 | 0.21 | 24'2" | 20'0" |
| 3718 | 1 3/4" | Stucco | 27 Gauge | Flush | 16.2 | 0.21 | 24'2" | 20'0" |
| 3715 | 1 3/8" | Stucco | 27 Gauge | Minor Ribbed | 12.9 | 0.21 | 18'2" | 16'0" |
Clopay’s proprietary polyurethane Intellicore® insulation
*Calculated door section R-value is in accordance with DASMA TDS-163
*Tested door U-factor is in accordance with DASMA 105.
**For sizes over 32’2″ wide consult factory for specific configuration requirements.
Options
Glass Panel Options
24" X 8" (3150, 3200, 3220)
24" X 12" (3150, 3200, 3220)
Full-View* (3150, 3200, 3220)
19-1/2" x 12" (3154, 3155, 3211, 3213)
*Aluminum Intellicore polyurethane full-view section available
Note: Windows available in insulated or insulated tempered glass.
Glazing Material Options
Clear Glass
Gray Tinted Glass
Bronze Tinted Glass
Mirrored Glass*
Obscure Glass
White Laminate Glass*
Frosted Glass Or Acrylic
Clear Acrylic
Gray Acrylic
White Acrylic
Clear Polycarbonate
Bronze Polycarbonate
Aluminum Panel (Color Matched)
*Mirrored and laminate not available in 1/2″
Glass thickness available in 1/8″, 1/4″ and 1/2″. Tri-wall polycarbonate thickness available in 1/2″. Low-E available on insulated glass.
Color Options
Standard White
Clear Polycarbonate
Clear Polycarbonate
Clear Polycarbonate
Clear Polycarbonate
Clear Polycarbonate
Clear Polycarbonate
Clear Polycarbonate
Clear Polycarbonate
Clear Polycarbonate
Clear Polycarbonate
Clear Polycarbonate
Clear Polycarbonate
*Available on select models.
Performance Options Available
Double-end hinge
Double-end hinge
High performance hardware: 10 gauge end hinges, a heavy-duty top bracket and 3" sealed rollers with a 5/8" stem.
We can add an exhaust port to any solid sectional door, in select sizes.
WindCode® reinforcement up to W8, design pressure (DP) 52 PSF, based on how the door is built. Doors are tested to 50% over DP.
Industrial-grade parts can replace the standard ones.
Springs rated for 25,000, 50,000 or 100,000 cycles.
Carry-away, roll-away or swing-up mullions, in select sizes.
Single section and double sections available on select sizes.
32" wide x 80" high, max 16'2" wide section. Available in 2" thick doors only.
The ControlGard® Chain Hoist has a built-in brake. The door moves only while someone pulls the chain, which protects the door and the people near it.
Springs and Hardware

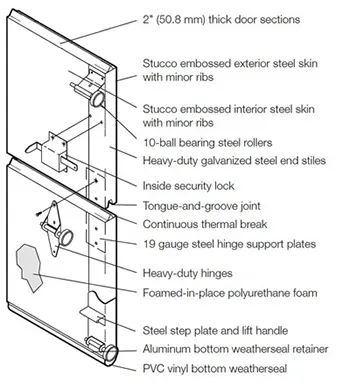

- 14 gauge hinges
- 10-ball steel rollers, or nylon tire rollers as an option
- 10,000 cycle torsion springs
- Steel step plate and lift handle
- Inside slide lock for added security
- 19 gauge steel hinge support plates
- 18-gauge single end stiles; 16-gauge double end stiles
- Galvanized aircraft cable, 7:1 safety factor
- 2” or 3” track, set up to fit the building
Space is often tight in a commercial building, so the track has to fit the room. Track choices: standard lift, low headroom with front or rear mount, follow the roof pitch, full vertical, or a mix of these.
Construction
Specs/Drawings
| Model | BIM | Shop Drawing | Specs | Installation Manual | Warranty |
| Model 3150 | - | PDF DXF |
DOCUMENT RTF |
||
| Model 3154 | - | DXF DWG |
DOCUMENT RTF |
||
| Model 3200 | - | PDF DWG DWG |
DOCUMENT RTF |
||
| Model 3213 | - | PDF DXF RFA |
DOCUMENT RTF |
||
| Model 3220 | RFA RFA RFA |
DXF DWG |
DOCUMENT RTF |
- | - |
Track And Jamb Drawings
| Track/Jamb | Drawing | DXF | |
| Standard Track | DWA | DXF | - |
| Standard Track Follow the Roof Track | DWA | DXF | |
| Low Headroom, Rear Mount Track | DWA | DXF | |
| Low Headroom, Front Mount Track | DWA | DXF | |
| Vertical Track | DWA | DXF | |
| High Lift Track | DWA | DXF | |
| High Lift Follow-the-Roof Track | DWA | DXF | |
| Jamb Details | DWA | DXF | - |

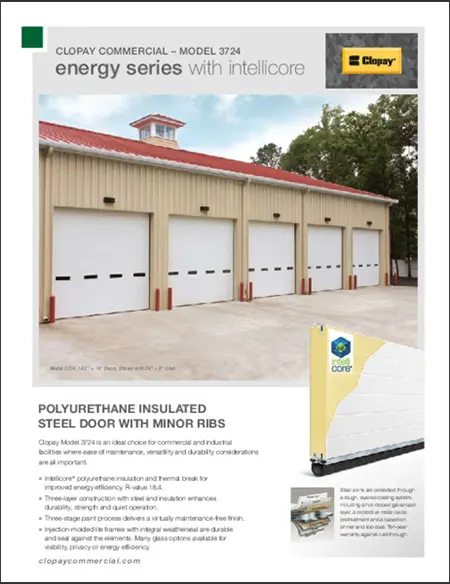

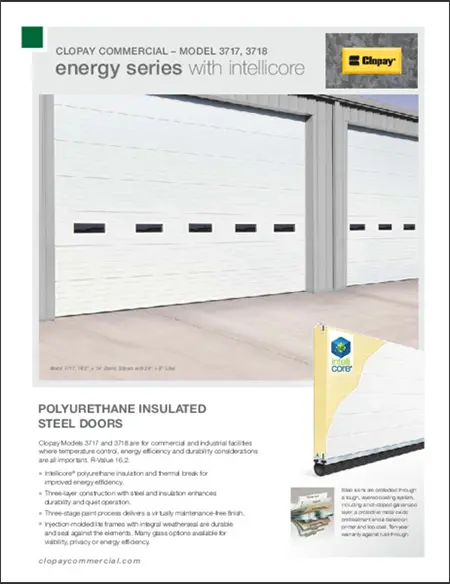

Brochures

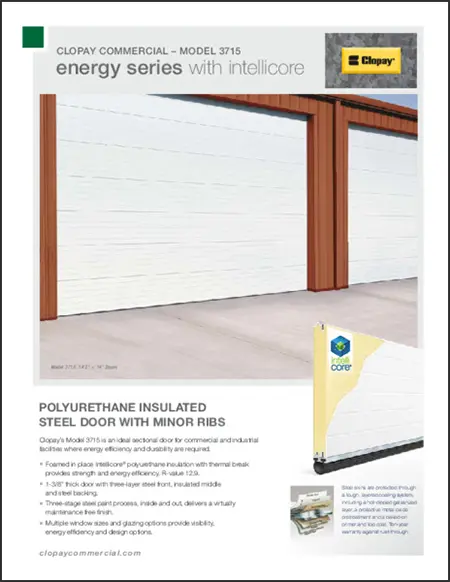

Intellicore® polyurethane insulation is foamed in place. It adds strength and saves energy, with an R-value of 12.9.

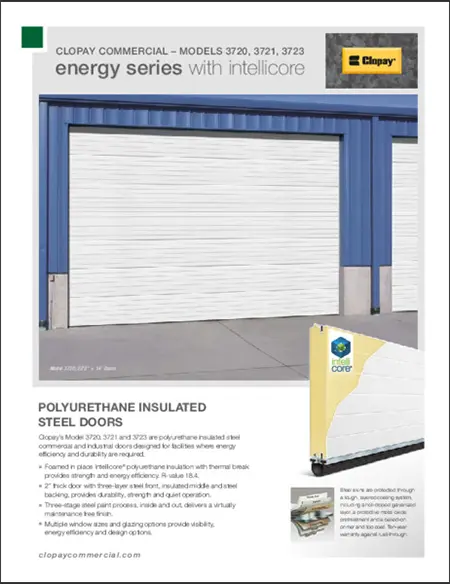

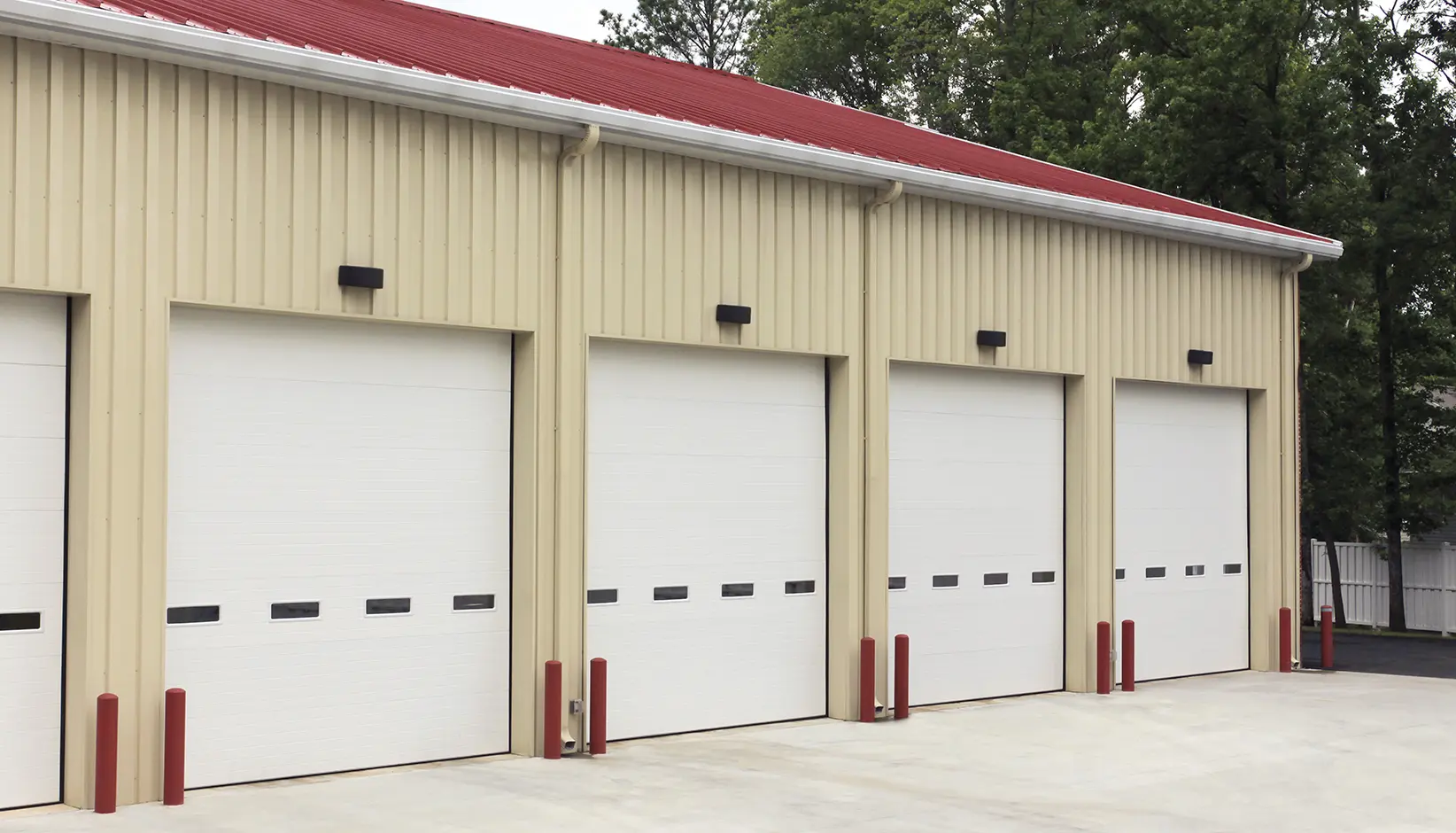

Brochure Model 3720-3721-3723
Polyurethane insulated steel doors that last, save energy and can be customized, with an R-value of 18.4.
Model 3730 suits commercial and industrial buildings that need a tough, easy-care door with a high R-value.
At Clopay, we take form and function seriously. From blueprints to reality, our expert engineers design commercial doors that exceed expectations for performance and elevated style.
Springs and Hardware
Model 3730
Panel Design: 3″ thick stucco embossed ribbed steel exterior
Steel Gauge: 27 gauge (.016″ min) exterior; 28 gauge (.016″ min) interior
Joint Design:Tongue and groove sections with a continuous foam thermal break, so heat and cold do not pass through
Thermal Conductivity: R-value 27.2* for high energy savings
Paint System:3-stage paint finish that needs no upkeep and resists rust
Colors: Snow mist white, commercial brown, ColorblastTM
Limited Warranty: 10-year paint / 10-year delamination / one-year material & workmanship
Energy Series with Intellicore®
