Aluminum full-view doors let daylight into a commercial building and let people see in and out, with a clean, modern look. Restaurants, fire stations and car dealerships use them. The frame is aluminum, and solid aluminum sections are an option when you want privacy. You pick the windows, color, design and performance options.
Models
| Model | Thickness | Spacing | R-Value | U-Factor | Max Width* | Max Height* |
|---|---|---|---|---|---|---|
| 904 | 2-1/8" | Equal width & spacing | - | - | 24'2" | 20'0" |
| 904U*** | 2-1/8" | Equal width & spacing | 3.8** | 0.73 | 20'2" | 20'0" |
| 905/906 | 2-1/8" | Minimal stiles | - | - | 22'2" | 16'0" |
| 905U/906U*** | 2-1/8" | Minimal stiles | - | - | 20'2" | 16'0" |
*Maximum Width and Height values listed are Standard sizing.
**With insulated low-e argon filled glass
***With Clopay’s proprietary polyurethane Intellicore insulation.
Tested door U-factor is in accordance with DASMA 105
Options
Glass Panel Options
Full-View (904)
Solid Aluminum (904)
Full-View (905/906)
Glazing Material Options (904/904U)
Clear Glass
5/16" Clear Laminated
Impact-Rated Glass**
Gray Tinted Glass
Bronze Tinted Glass
Mirrored Glass*
White Laminate Glass*
Frosted Glass Or Acrylic
Clear Acrylic
Gray Acrylic
White Acrylic
Gray Acrylic
White Acrylic
Bronze Polycarbonate
Bronze Polycarbonate
Aluminum Panel (Color Matched)
*Mirrored and laminate not available in 1/2″
Glass options above only available on full-view sections. Glass thickness available in 1/8″, 1/4″ and 1/2″. Tri-wall polygal thickness available in 5/8″. Low-E available on insulated glass.
**Available in 904W8/904UW8 only
Glazing Material Options (905/905U)
Standard White
Clear Polycarbonate
Clear Polycarbonate
Clear Polycarbonate
Clear Polycarbonate
Hardcoated Acrylic options available
Thickness is 1/8″
*only available in 1/4″ thick
Glazing Material Options (906/906U)
Clear Tempered Glass
Gray Tinted Tempered Glass
Bronze Tinted Tempered Glass
Clear Polycarbonate
Low E glass available
Glass thickness available in 1/8″, 1/4″ and 1/2″
Color Options
Clear Aluminum (Anodized)
Standard White
Bronze (Painted)
Chocolate (Painted)
Bronze Anodized*
Black (Anodized)*
Dark Bronze Anodized*
*Extra cost and a longer wait may apply. Anodized color can vary a little, so for an even match we suggest “Bronze (Painted)”.
Custom powder coat, Color Blast®, and anodized finishes available.
Premium finishing options include:
- RAL color powder coat
- 187 different powder coat offerings
- Custom Colors with Color Blast® Garage Door Paint System
- Bronze, dark bronze, black or custom color anodized finishing
Performance Options Available
Double-end hinge
3" track
High performance hardware: 10 gauge end hinges, a heavy-duty top bracket and 3" sealed rollers with a 5/8" stem.
We can add an exhaust port to any solid sectional door, in select sizes.
WindCode® reinforcement up to W8, design pressure (DP) 52 PSF, based on how the door is built. Doors are tested to 50% over DP.
Springs rated for 25,000, 50,000 or 100,000 cycles.
Specs/Drawings
Model 904/904U, 905/905U, 906/906U
Construction
Exterior Skin Pattern : Recessed aluminum panel
Exterior Aluminum Gauge : 6063-T5 Aluminum
Rails and Stiles : Polyurethane Insulated (904U, 905U, 906U only)
Colors : Clear Aluminum (Anodized), Standard White, Bronze (Painted), Chocolate (Painted), Bronze (Anodized), Dark Bronze (Anodized)
Limited Warranty : 5-Year Finish / 1-Year Material and Workmanship / 1-Year Hardware
2-1/8” commercial grade aluminum that lasts and needs very little care.

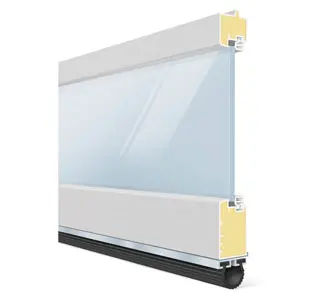

Insulated models: 2-1/8" commercial grade aluminum filled with polyurethane insulation

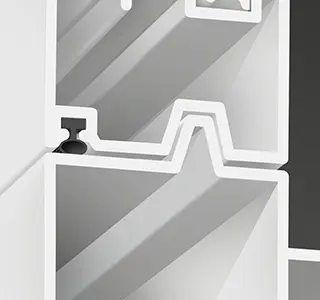

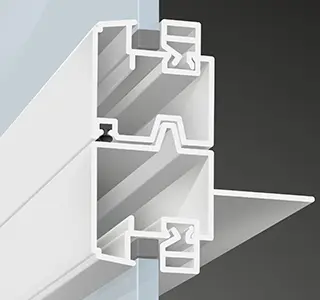

Tongue-and-groove joints with a built-in seal keep out more air and water.

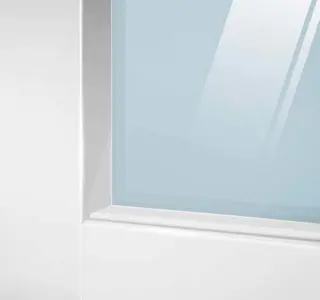

Smooth, flat frame edges for a modern look.
Doors wider than 14’ come with a reinforcing fin. Doors 12’ and under do not have one. From 12’2” to 14’ wide it depends on the glass weight. WINDCODE® doors may differ.
Specs/Drawings
Brochures
Springs and Hardware
- 14 gauge hinges
- 10-ball steel rollers, or nylon tire rollers as an option
- 10,000 cycle torsion springs
- Steel step plate and lift handle
- Inside slide lock for added security
- Galvanized aircraft cable, 7:1 safety factor
- 2” or 3” track, set up to fit the building
Commercial Track Applications
Space is often tight in a commercial building, so the track has to fit the room. Track choices: standard lift, low headroom with front or rear mount, follow the roof pitch, full vertical, or a mix of these.
Architectural Series-Aluminum
Aluminum full-view doors have a clean design with fewer lines and angles.
